PP ODB Nap Fiber Optic Distribution Box 110mm 3 In 16 Out

Name: PP ODB Nap Fiber Optic Distribution Box 110mm 3 In 16 Out
Brand: UT-King
Price: 1 USD

China PP ODB Nap Fiber Optic Distribution Box 110mm 3 In 16 Out wholesale

Brand Name : UT-King

Model Number : FDB316B

Certification : CE,ROHS,ISO9001

Place of Origin : China

MOQ : 10pcs

Payment Terms : T/T, Western Union

Supply Ability : 1000pcs/week

Delivery Time : 3-5days

Packaging Details : 1pcs/box 10pcs/carton

product name : fiber optic distribution box

material : PP+GF

Color : Black

cable prot : 3 in 16 out

Dimension : 285mm*175mm*110mm

Assemmbling method : pole or wall-mounting

Protection level : IP65

Keywords : Cable distribution box

number of Packing : 10 pcs/ctn

Contact Now

PP+GF Material Fiber Optical Waterproof Distribution Box 16 Core ODB NAP Cable Junction Box

Description

UT-King’s FDB316B is an IP68 rated enclosure manufactured from high quality PP+GF, it has a special feature of draining off water by using several drainage holes.

Features

3 feeder cable ports +3 feeder cable ports(3 in+3 out)
Up to 24 heat shrink
16 drop cable exit ports
Fiber storage and management in the splicing tray
IP68 rating
Support insertion type PLC and Mini PLC splitter
Robust design
Range of colors

Specification

Model	UT-FDB316B
Dimension	285mm175mm110mm
Color	Black
Capacity of FOSC	Bunchy:24 cores
Max ratio	1:16
Cable entry ports	In 3 Out 16
Diameter of Cable	Φ16mm
Assemmbling method	pole, wall-mounting
Protection level	IP65
Outter carton size	600400320mm
number of Packing	10 pcs/ctn
weight	18kg /ctn

Detail Images

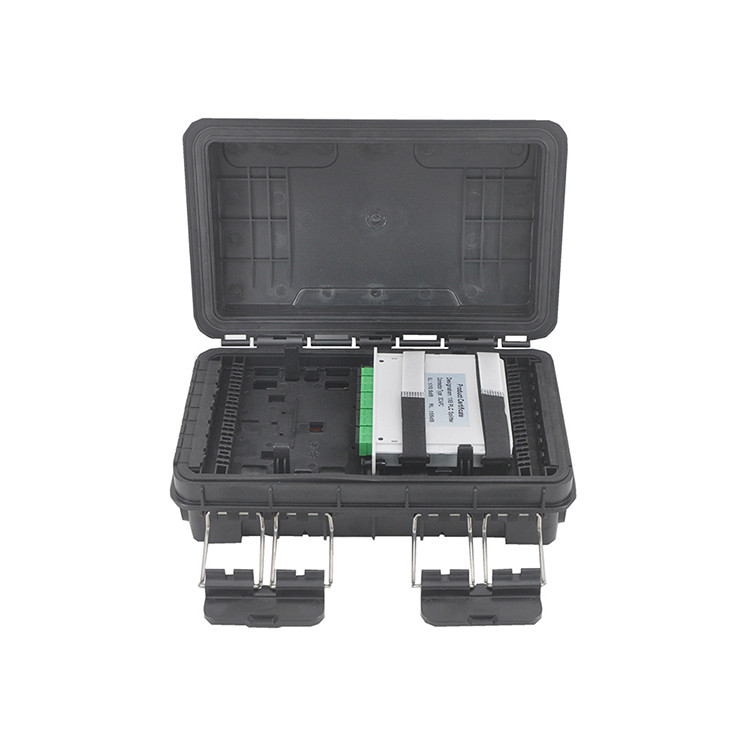

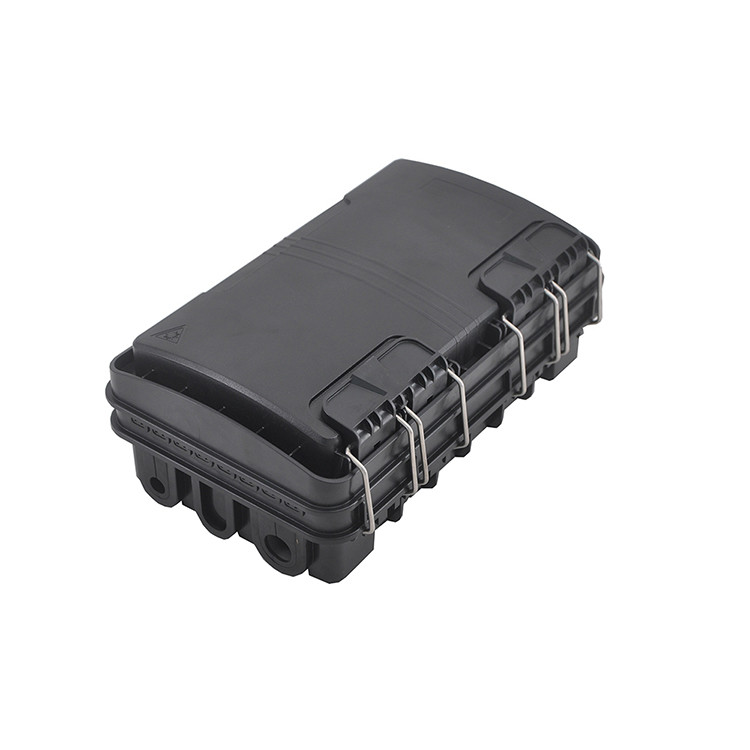

PP ODB Nap Fiber Optic Distribution Box 110mm 3 In 16 Out

Installation:

1．Wall-mounted installation

2．Pole-mounted installation
